About DRILLXS
What is DRILLXS?

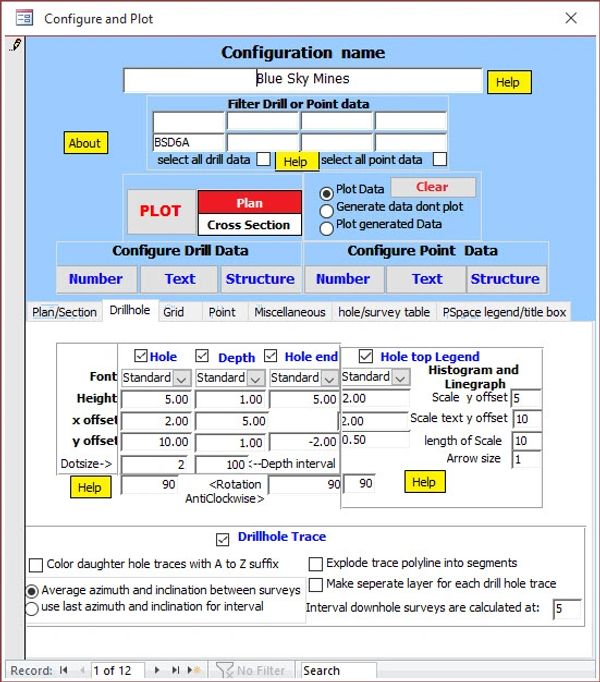

DrillXS is a Microsoft Access Application using a combination of the Microsoft Access and AutoCAD object libraries to plot drill cross sections, plans and point data in AutoCAD when linked to a drilling database.
DrillXS can in 3D plot:
- Drill hole traces with any number of related attributes as values, colored values, colored bars, histograms, line graphs, cylinders and hyperlinks.
- Structural data as planes and a variety of dip symbols.
- Points in eight different formats.
- A grid in plan or cross section view, or a grid cage.
- A scalebar, title box, and legend
Plotted data is in true 3d and can be viewed from any angle, rendered or sliced using the existing features of AutoCAD. Multiple cross sections or plans can be batch produced.
Plus you get the power of native AutoCAD, AutoCADMap GIS, and Access.
